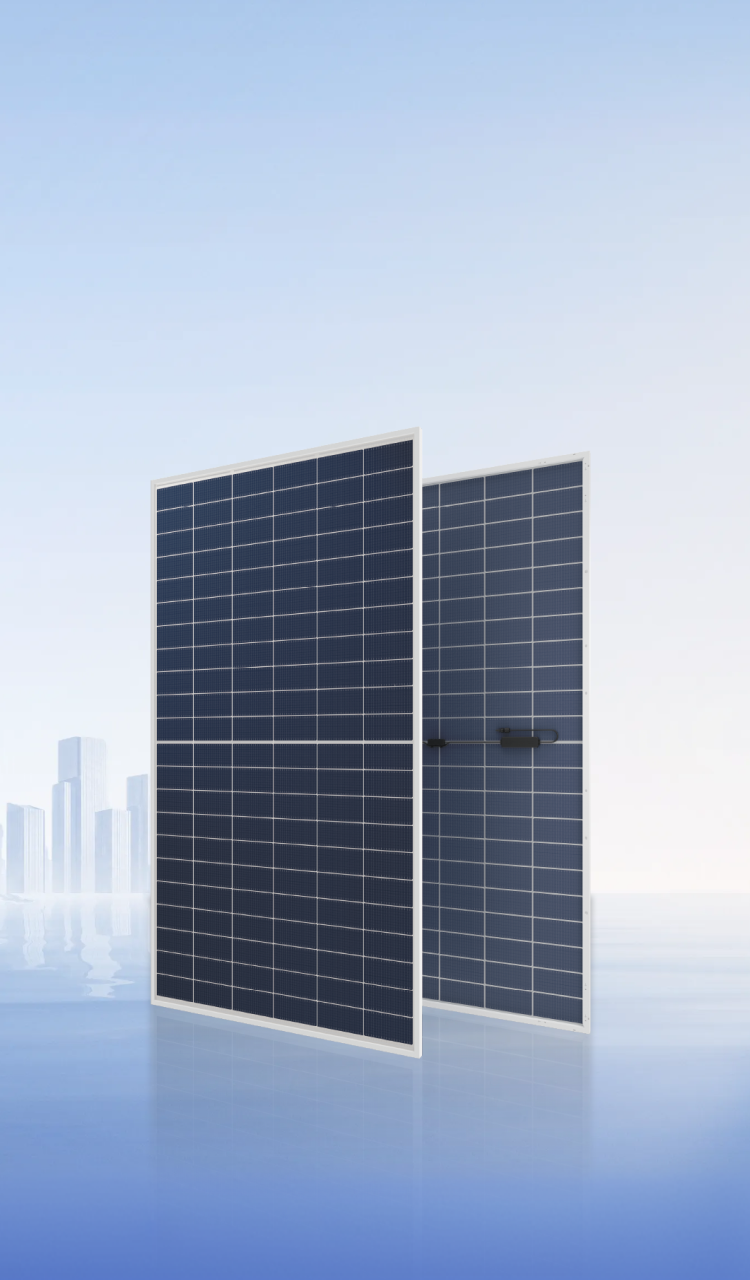

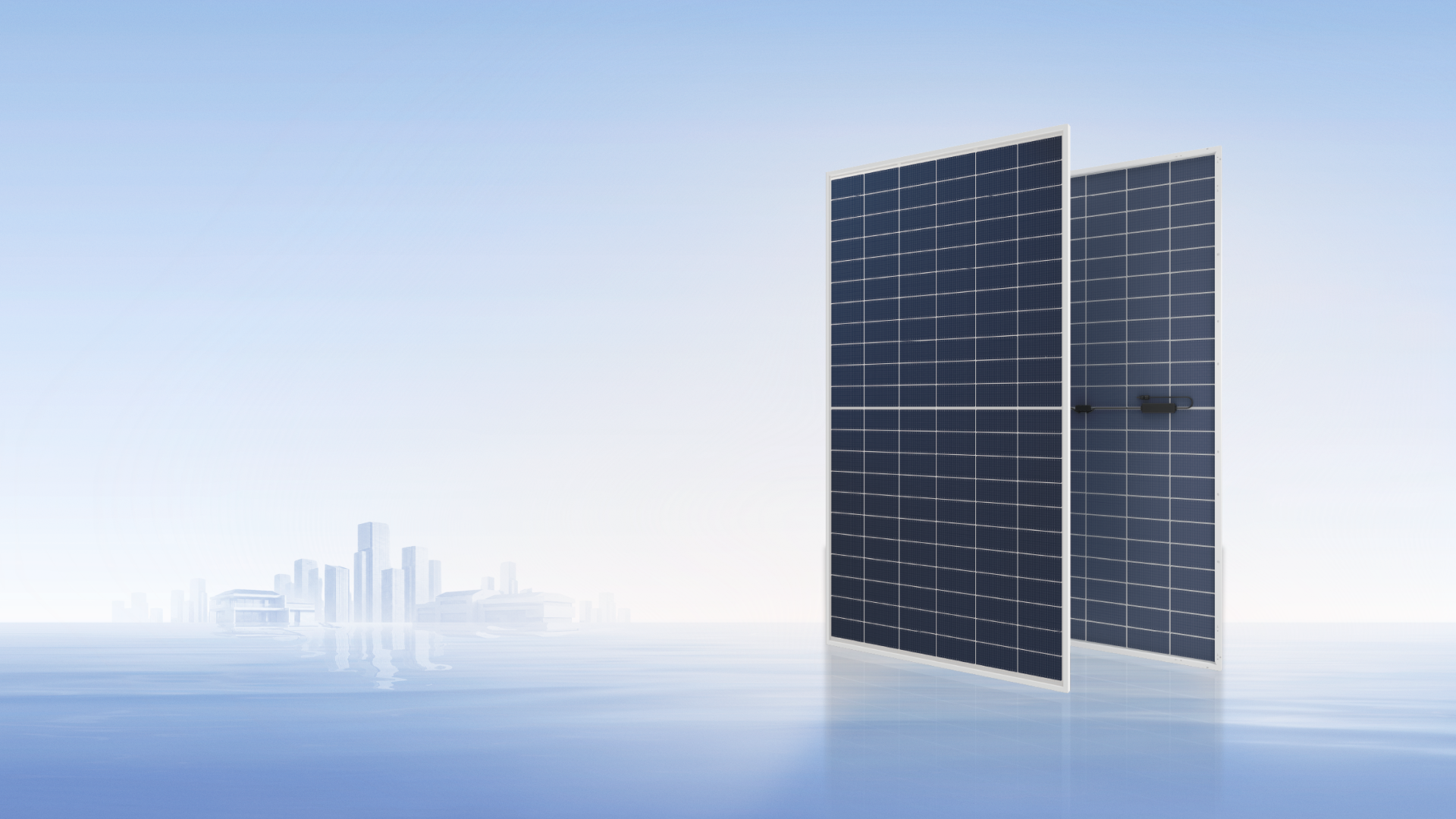

Maximum Power Pmax (W) |
720 |
725 |
730 |
735 |
740 |
745 |
|
Voltage at Maximum Power (Vmp/V) |
40.89 |
41.01 |
41.13 |
41.25 |
41.37 |
41.49 |
|
Current at Maximum Power (Imp/A) |
17.61 |
17.68 |
17.75 |
17.82 |
17.89 |
17.96 |
|
Open Circuit Voltage (Voc/V) |
49.04 |
49.20 |
49.36 |
49.52 |
49.68 |
49.84 |
|
Short Circuit Current (Isc/A) |
18.67 |
18.74 |
18.81 |
18.88 |
18.95 |
19.02 |
|
Module Efficiency (%) |
23.2 |
23.3 |
23.5 |
23.7 |
23.8 |
24.0 |
|
Power Tolerance |
0~+3% |
Maximum System Voltage |
DC1500V |
|||
|
Maximum Series Fuse Rating |
35A |
Operating Temperature |
-40℃~+70℃ |
|||
|
Bifacial Factor |
80±5% |
|||||
|
Maximum Power Pmax (W) |
792 |
798 |
803 |
809 |
814 |
820 |
|
Voltage at Maximum Power (Vmp/V) |
40.89 |
41.01 |
41.13 |
41.25 |
41.37 |
41.49 |
|
Current at Maximum Power (Imp/A) |
19.37 |
19.45 |
19.53 |
19.60 |
19.68 |
19.76 |
|
Open Circuit Voltage (Voc/V) |
49.04 |
49.20 |
49.36 |
49.52 |
49.68 |
49.84 |
|
Short Circuit Current (Isc/A) |
20.54 |
20.61 |
20.69 |
20.77 |
20.85 |
20.92 |
|
Cell Type |
N-type mono-crystalline |
|
Cell Orientation |
132 (6×22) |
|
Dimension |
2384×1303×33 mm |
|
Weight |
37.0 kg |
|
Front Glass |
2.0mm, Anti-reflection Coating |
|
Back Glass |
2.0mm, Heat Strengthened Glass |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP68 rated |
|
Output Cables |
4mm², (+):1200mm, (-):1200mm or customize length |
|
Connector Type |
MC4-EVO2A/others |
|
Mechanical Load |
5400Pa (Front side)/2400Pa (Rear side) |
|
Temperature Coefficients of Pmax |
-0.29%/°C |
|
Temperature Coefficients of Voc |
-0.25%/°C |
|
Temperature Coefficients of Isc |
0.045%/°C |
|
Packing Detail |
33 pcs/pallets, 594 pcs/40'HQ container |
|
Shutdown Output Voltage |
1±0.1V |
|
Output Bypass |
Yes |
|
Rapid Shutdown Time |
≤25s |
|
Maximum Input Voltage |
60V |
|
Maximum System Voltage |
1500 V |
|
Communication Method |
PLC |
|
Maximum Communication Distance |
≤450 m |
